    Mega Midi 5 Way High Load Four Outlet Midival Fuse Holder Power Distribution Box 5-Fold With Cover For Screw Automotive

    Ask Lasest Price
    Brand Name : CNAMPFORT
    Model Number : BX2054
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C
    Supply Ability : 10KKPCS PER MONTH
    Delivery Time : 5~7 Days
    • Product Details
    • Company Profile

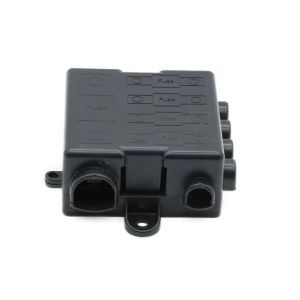

    Mega Midi 5 Way High Load Four Outlet Midival Fuse Holder Power Distribution Box 5-Fold With Cover For Screw Automotive

    Mega Midi 5 Way High Load Four Outlet Midival Fuse Holder Power Distribution Box 5-Fold With Cover For Screw Automotive Fuses

    High-load fuse holder 5-fold with cover for high-load fuses and screw-type automotive fuses Fully insulated fuse holder with one main fuse (high-load fuse) via threaded bolt M8 and 4 circuit fuses (screw-type automotive fuses) via threaded bolt M5 for protecting large consumers or high-load circuits. Supplied without fuses. Dimensions: 116 x 95 x 40 mm

    This box accepts one MEGAVAL fuse on the input side between two M8 studs and four MIDIVAL fused outlets from a common busbar. Size 87mm x 116mm x 38mm high.

    Clip-on lid.

    Two 5mm mounting holes at 98mm centres.

    Weight 182gms.

    FUSES AND CABLES NOT INCLUDED FOUR OUTLET MIDIVAL FUSE DISTRIBUTION BOX #MFDB4

    Fuse distribution 1 MEGA in / 4 MIDI out

    • Fuse holder with housing cover for midi and mega fuse

    • M5 threaded studs and hex nuts to secure fuse

    • PA 6.6 GF-30 body material

    • Stackable

    • Overhang in the cover provides improved protection of the terminals

    Cars, villas, RV, buses, yachts, boats, electrical appliances, new energy machines and other electrical appliances such as: roof lights, car headlights, width lights, fog lights, warning lights, Car refrigerator, car charger, car fan, car TV, etc.

    Product NameFuse Box
    Rated CurrentMEGA 500A Max, MIDI 200A Max
    Rated Voltage48V DC
    HousingPA66
    HardwareStainless Steel
    FeatureDustproof
    ColorBlack
    Fuse TypeMIDI Fuse, MEGA Fuse
    ApplicationAutomotive, Boat, etc
