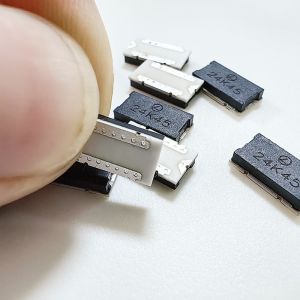

    Buy cheap Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack from wholesalers

    Buy cheap Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack from wholesalers
    • Buy cheap Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack from wholesalers
    • Buy cheap Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack from wholesalers
    • Buy cheap Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack from wholesalers
    • Buy cheap Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack from wholesalers
    • Buy cheap Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack from wholesalers

    Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack

    Ask Lasest Price
    Brand Name : CNAMPFORT
    Model Number : SCP45A/60A
    Certification : ROHS,UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 5000,000pcs / month
    Delivery Time : 2-3 Weeks
    • Product Details
    • Company Profile

    Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack

    Triggerable Three Terminal Protective Element Surface Mount Self Control Fuse SCF 45A 60A 80V For Li-Ion Battery Pack

    a. SCP series SCF (self-control fuse) family provides overcurrent and overcharge protection ideal for multi-cell battery packs and systems. The product features an integrated fuse element assembly and heater where the heater can be activated to open the fuse element upon an IC or FET detecting an overvoltage (overcharge) issue. The family is available in three different footprints with current ratings from 12 A to 120 A.

    b. Self Control Fuse (SCF)is a three-terminal protective element,mainly used secondary protection in notebook computers lithium ion battery , tablet computers lithium ion battery and mobile phones lithium ion battery. SCF protects lithium ion battery from the overcharge and the overcurrent . When the lithium battery overcurrent, the fuse will melt and cut off the current or when the heater is activated and melts fuse element to stop overcharging, the flow electric current through the heater stops as soon as the charging circuit is cut off. SCF can be installed by the SMT machine and reflow soldering.

    c. SCF = Self Control Fuse is an externally triggerable fuse to provide secondary lineprotection for battery packs. SCF can be triggered by activating a heater (poweredby the battery itself of charger) in case of: battery pack overcharge, cell over- orunder-voltage, high temperature.

    Halogen free, SMD Electronic devices, High structural intensity, Over current protection, Over charge protection, Over heating protection, Compatible with reflow soldering processes.

    • Surface mount, 3 terminal fuse

    • Provides overcurrent andovercharging protection

    • Integrated thermal element providestriggerable operation

    • Ideal for battery powered electronics

    • A unique fusible device provides fastacting performance

    • Moisture sensitivity level (MSL): 1

    • Cost efficient secondary battery pack protection

    • High reliability protection solution

    • Easy integration for most battery packs up to 80V

    • Notebook and laptop computing

    • Handheld electric power tools

    • Battery powered household appliances

    • Battery powered power tools

    • Battery powered vacuum cleaners and robots

    • eBikes, eRollers

    • AGVs

    Part NumberSCP
    Current Rating45A/60A
    Voltage Rating80VDC
    Applicable Safety StandardsUL248-1,Ul248-14
    Fuse DCRUL CUL ROHS
    PackageTape in reel
    Interrupting Rating120/160A
    MPQ2000

    Note: Rated voltage is the maximum voltage that the fuse can block, not the action voltage of the heater assembly.

    Catalog

    No.

    Ampere

    Rating

    Voltage

    Rating

    Breaking capacityFuse DCR

    Cells in

    series

    Operating

    Voltage

    Approvals
    UL
    SCP12A1J1236VDC50A1.0-3.513.0-4.5VY
    SCP12A2J1236VDC50A1.0-3.524.0-9.0VY
    SCP12A3J1236VDC50A1.0-3.537.4-13.8VY
    SCP12A4J1236VDC50A1.0-3.5410.5-19.6VY
    SCP15A1J1536VDC50A1.0-3.013.0-5.0VY
    SCP15A2J1536VDC50A1.0-3.025.0-9.0VY
    SCP15A3J1536VDC50A1.0-3.037.4-13.8VY
    SCP15A4J1536VDC50A1.0-3.0410.5-19.6VY
    SCP15A5J1536VDC50A1.0-3.0513.0-23.5VY
    SCP15A6J1536VDC50A1.0-3.0614.1-28.0VY
    SCP15A7J1536VDC50A1.0-3.0716.5-31.5VY
    SCP15A8J1536VDC50A1.0-3.0818.8-36.0VY
    SCP15A9J1536VDC50A1.0-3.09-1025.0-47.0VY
    SCP15A11J1536VDC50A1.0-3.011-1232.0-56.4VY
    SCP15A13J1536VDC50A1.0-3.013-1435.0-62.0VY

    Wayon self control fuseWPFxxAxK,WPFxxAxH,WPFxxAxJ,WPF05AxR
    POLYTRONICS CLMCLM1612 12A,CLM1612 15A,CLM2213 30A,CLM3820 30A,CLM3820 45A, CLM1612 22A
    Lanson Self Control Protector SCPSCP12A/15A 4x3,SCP30A 5.4x3.2,SCP 45A/60A 9.5x5
    DexerialsSFM-12120 / SFM-14120 / SFM-20120 / SFM-30120 / SFM-40120 / SFM-50120
