    53D471K 105C MOV Metal Oxide Varistor 70KA 1600Vdc MOV Surge Protection

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : 53D471K
    Certification : UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 2,000,000 Pieces Per Month
    Delivery Time : 2-3 Weeks
    • Product Details
    • Company Profile

    53D471K 105C MOV Metal Oxide Varistor 70KA 1600Vdc MOV Surge Protection


    Screw Mounting Disc Epoxy Resin Metal Oxide Varistor 53D471K 70KA 200 to 1600V

    Introduction Of The Epoxy Resin Metal Oxide Varistor 53D471K
    VARISTOR is a polycrystalline ceramic body consisting of semi conducting zinc-oxide (ZnO) grains and second phase(Including) Bi2O3,Sb2O3, MnO, CoO, etc) Located at the joints of the grains, it’s called varistor (variable resistor)



    Ø 53D Series Metal Oxide Varistor

    Part NumberVac(V)Vdc(V)V1mA(V)Ip(A)Vc(V)I(A)(J)@1KHz(pF)
    53D330K202633(29.5-36.5)10065200008581000
    53D390K253139(35-43)100772000010560000
    53D470K303847(42-52)100932000013052000
    53D560K354556(50-62)1001102000015046000
    53D680K405668(61-75)1001352000019041000
    53D820K506582(74-90)5001357000022535000
    53D101K6085100(90-110)5001657000028028500
    53D121K75100120(108-132)5002007000034023500
    53D151K95125150(135-165)5002507000043019000
    53D181K115150180(162-198)5003007000050017000
    53D201K130170200(180-220)5003407000055015000
    53D221K140180220(198-242)5003607000060013750
    53D241K150200240(216-264)5003957000065012500
    53D271K175225270(243-297)5004557000070011000
    53D301K190250300(270-330)5005007000076510000
    53D331K210275330(297-363)500550700008259000
    53D361K230300360(324-396)500595700008508500
    53D391K250320390(351-429)500650700008857500
    53D431K275350430(387-473)500710700009907000
    53D471K300385470(423-517)5007757000010806500
    53D511K320415510(459-561)5008457000011506000
    53D561K350460560(504-616)5009257000012005500
    53D621K385505620(558-682)50010257000013005000
    53D681K420560680(621-748)50011207000013504500
    53D751K460615750(675-825)50012407000014004000
    53D781K485640780(702-858)50012907000014503900
    53D821K510670820(738-902)50013557000016003700
    53D911K550745910(819-1001)50015007000017003300
    53D951K575765950(855-1045)50015707000018003200
    53D102K6258251000(900-1100)50016507000018903000
    53D112K6808951100(990-1210)50018157000020502700
    53D122K7509901200(1080-1320)50019807000021602500
    53D142K88011401400(1260-1540)50023107000023002150
    53D162K100012801600(1440-1760)50026407000025001900

    General specifications Of The Epoxy Resin Metal Oxide Varistor 53D471K

    * Size _ 53D
    * Varistors Voltage_200Vdc to 1600Vdc
    * Max. Energy (10/1000uS)_550Joule to 2500Joule
    * Working Temp. Range_-40℃to+85℃
    * Max. Peak Current (8/20uS)_40000Amps(2 times) to 70000Amps(1 time)
    * Varistors Tolerance_±10%

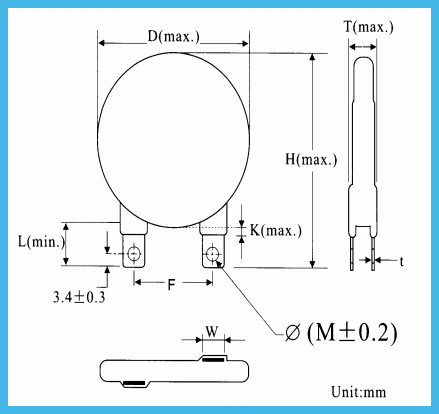

    Size Of The Epoxy Resin Metal Oxide Varistor 53D471K (mm)

    D(max.)60
    H(max.)78.2
    T(max.)Ref. Table
    F(±0.5)25.4
    t (±0.1)0.7
    L (min.)16.5
    K (max.)3.18
    W (±0.5)9.7
    Ø (M3±0.2)4.15

    ModelT(max.)ModelT(max.)
    201K6.3751K9.5
    241K6.5781K9.7
    271K6.7821K9.9
    331K7.0911K10.5
    361K7.2951K10.7
    391K7.4102K11.3
    431K7.6112K11.9
    471K7.9122K12.4
    511K8.1142K13.4
    621K8.8162K14.4
    681K9.1



    Screw Mounting Metal Oxide Varistor

    32DDisc,Peak Current 25000A-40℃~+105℃200~1800Vdc250~1300Joule15000Amps(2 times)~25000Amps(1 time)
    34SSquare,Peak Current 40000A-40℃~+105℃200~1800Vdc330~1500Joule20000Amps(2 times)~40000Amps(1 time)
    40DDisc,Peak Current 40000A-40℃~+105℃200~1800Vdc370~1800Joule20000Amps(2 times)~40000Amps(1 time)
    53DDisc,Peak Current 70000A-40℃~+105℃200~1600Vdc550~2500Joule40000Amps(2 times)~70000Amps(1 time)
