    4532 Gas 2 Terminal Discharge Tube UL SMD Gas Discharge Tube Lightning Protection

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : 4DS470H
    Certification : UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 10,000,000 Pieces Per Month
    Delivery Time : 7-10 Workdays
    • Product Details
    • Company Profile

    4532 Gas 2 Terminal Discharge Tube UL SMD Gas Discharge Tube Lightning Protection

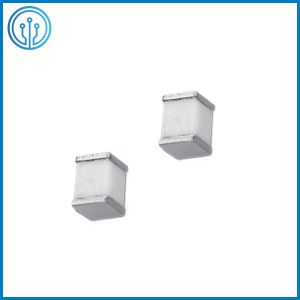

    2 Terminal SMD Ceramic Gas Discharge Tube 4.5x3.2x2.7mm 470V GDT 2KA For Modems


    Features Of The SMD Ceramic Gas Discharge Tube 4.5x3.2x2.7mm


    ■ High insulation resistance.

    ■ Low capacitance (≤0.5pF).

    ■ 2000A 8/20μs maximum surge current capacity in accordance with IEC61000-4-5.

    ■ 4KV 10/700μs maximum surge rating in accordance with ITU-TK.21

    ■ Surface mounted gas arrester

    ■ Micro-Gap Design

    ■ 3.2 x 4.5 mm (4532) Footprint
    ■ High Surge Current Rating
    ■ Non-Radioactive
    ■ RoHS Compliant (100% Lead-Free)
    ■ Low Capacitance ≤ 1pF
    ■ Proven Performance

    ■ Storage and operating temperature: -40℃ ~ +85℃

    ■ Meets MSL level 1, per J-STD-020

    ■ Safety certification: UL


    Applications Of The SMD Ceramic Gas Discharge Tube 4.5x3.2x2.7mm


    ■ Repeaters, Modems.

    ■ Telephone Interface, Line cards.

    ■ Data communication equipment.

    ■ Line test equipment

    ■ Cable Telephony Products
    ■ Modems/Cable Modems
    ■ Broadband/CATV/Coaxial Protectors
    ■ xDSL Modems and Peripherals
    ■ Building Entry/Outside Plant
    ■ Transient Voltage Surge Suppression (TVSS)

    ■ Transient Voltage

    ■ Surge Suppression

    ■ Cable Telephony Products

    ■ Modems/Cable

    ■ Modems Broadband/CATV/Coaxial Protectors

    ■ xDSL Modems and Peripherals

    ■ Building Entry/Outside Plant


    Electrical Characteristics Of The SMD Ceramic Gas Discharge Tube 4.5x3.2x2.7mm


    Catalog No.DC Spark Over Voltage (100v/s)VImpulse Spark Over Voltage (1kv/μs)VInsulation Resistance MΩElectrode Capacitance 1MHz 0.5V PFImpulse Discharge Current (8/20μs 10times)AC Discharge Current (50Hz 1s 10times)A
    4DS075H075±30%≤700≥1≤12KA2A
    4DS090H090±30%≤700≥1≤12KA2A
    4DS150H150±30%≤700≥1≤12KA2A
    4DS200H200±30%≤800≥1≤12KA2A
    4DS230H230±30%≤800≥1≤12KA2A
    4DS300H300±30%≤1000≥1≤12KA2A
    4DS350H350±30%≤1000≥1≤12KA2A
    4DS400H400±30%≤1100≥1≤12KA2A
    4DS470H470±30%≤1200≥1≤12KA2A
    4DS600H600±30%≤1400≥1≤12KA2A

    Dimensions Of The SMD Ceramic Gas Discharge Tube 4.5x3.2x2.7mm (mm)



    Electrical Ratings Of The SMD Ceramic Gas Discharge Tube 4.5x3.2x2.7mm


    ItemsTest Condition/DescriptionRequirement
    DC Spark-over VoltageThe voltage is measured with voltage ramp dv/dt=100V/s.To meet the specified value
    Maximum Impulse Spark-over VoltageThe maximum impulse spark-over voltage is measured with voltage ramp dv/dt=1000V/μs.
    Insulation ResistanceThe resistance of gas tube shall be measured between two electrodes.
    Capacitance

    The capacitance of gas tube shall be measured between two electrodes.

    Test frequency: 1MHz

    Impulse Discharge CurrentMaximum 8/20μs surge current that can be applied between two electrodes, 5 positive and 5 negative surges, with 3 minutes interval tim.
    Impulse Withstanding VoltageThe maximum 10/700μs surge that can be applied to the Gas Tube, 5 positive and 5 negative surges, with 1 minute interval time, without causing the DC spark-over voltage to change more than 25% from its initial value.

    Gas Discharge Tube Family
