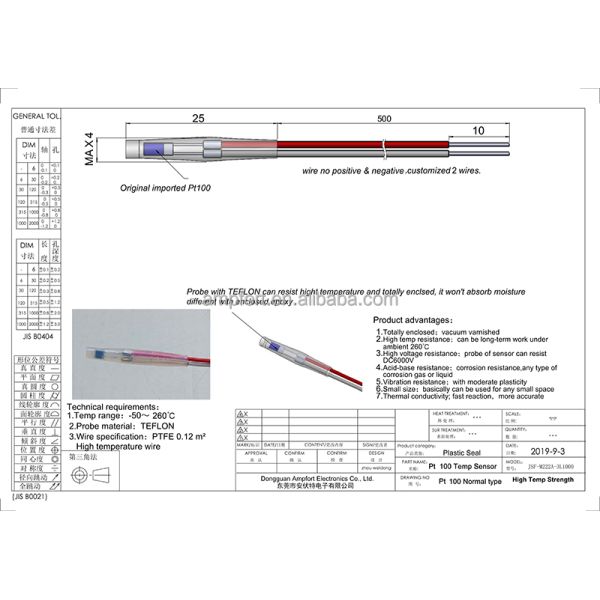

High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
Description
The perfluorinated Pt100 temperature sensor is primarily used for
embedding inside coils during the installation of motor and
transformer windings for temperature monitoring and control
purposes. Compared to traditional common products (such as
iron-cased sensors), its advantages are evident.
1. The Pt platinum resistor is completely encapsulated and
solidified in fluoroplastic, providing high insulation to the body
and ensuring long-term stability and accuracy across a wide
temperature range.
2. The ultra-small insulation structure can be easily installed and
embedded into narrow spaces. It can be appropriately shaped and
bent according to the coil without damaging the winding, avoiding
inter-turn short circuits, and ensuring extremely fast thermal
response speed.
3. The perfluorinated sensor exhibits resistance to vacuum
impregnation and exceptional high voltage tolerance.
4. At the same time, the sensor also boasts high mechanical
strength, vibration resistance, and resistance to any corrosion.
Perfluorinated sensors are available in various models and
categories, such as Pt200, Pt500, Pt1000, NTC, KTY, etc., and
include 2-wire, 3-wire, and 4-wire products.
Specification


Series features
| Recommended test current value (thermal effect value less than 0.1℃) | DC 0.3-1mA |
| Resistance at 0℃) | 100±0.06Ω |
| Resistance change value (0...100℃) | 0.385Ω/℃ |
| Operating temp range | -70--+260℃ |
| PTFE-lead specifications | standard 0.14mm2(AWG26) optional 0.2mm2(AWG24) |
| Insulation test voltage | AC 2.5kV |
| Protection level as EN60529 standard | IP54 |
| Bend radius | >25mm |
